2000 kg Refuse Collector Grading Table for 100T/day Garbage Waste Treatment Machinery
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | AITE |
| Certification: | CE ISO TUV |
| Model Number: | AITE-msp |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,900.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction Works , Energy & Mining, Other |
|---|---|---|---|
| Showroom Location: | None | Type: | Refuse Collector |
| Warranty: | 1 Year | Power: | 4-5.5 |
| Production Capacity: | ≥20T/H, 20-100(t/h) | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel, Motor, Bearing, Gear, PLC, Pump, Engine |
| Weight (KG): | 2000 Kg | Product Name: | Manual Sorting Platform For Waste Sorting |
| Application: | Household Waste City Garbage Construction Waste Various Solid Garbage | Type: | Solid Waste Sorting Machine |
| After Warranty Service: | Field Maintenance | Advantage: | Easy Operation High Efficiency |
| Separation Rate: | 99% | Bag Break Rate (%): | 60-90% |
| Voltage: | 380V(can Customized) | ||
Product Description
Products Description

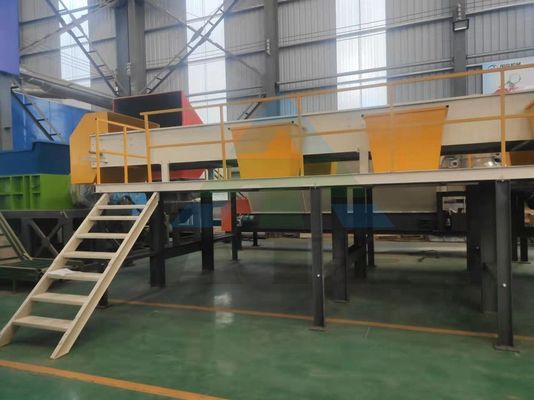

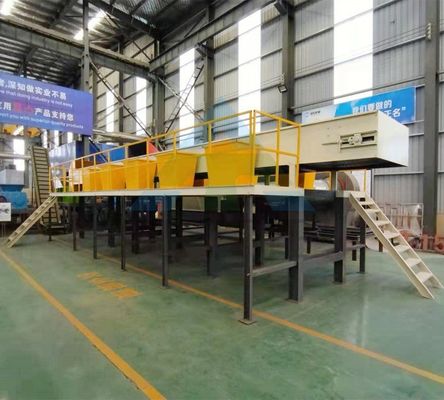

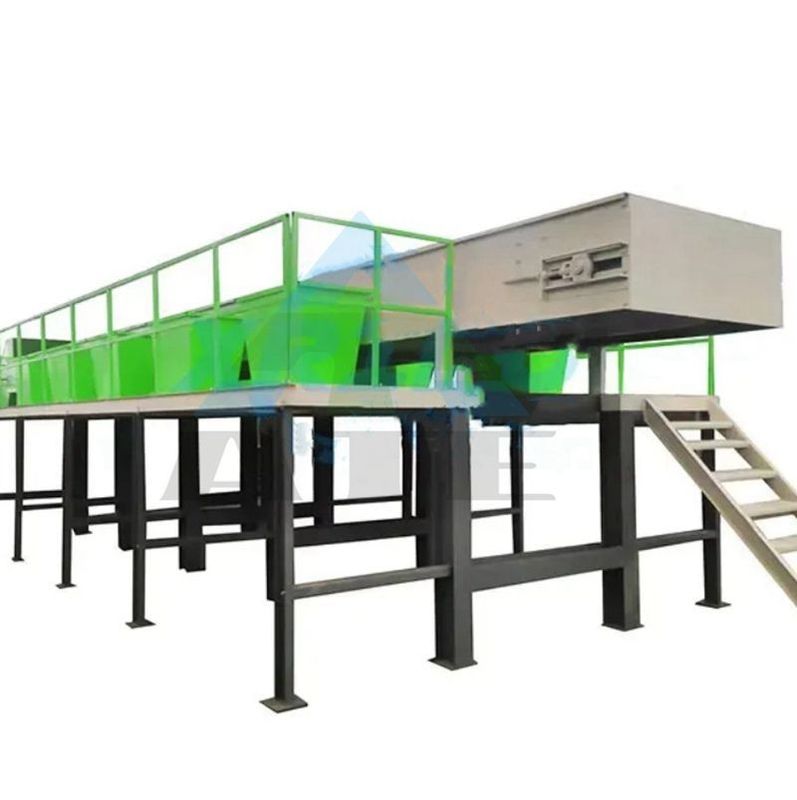

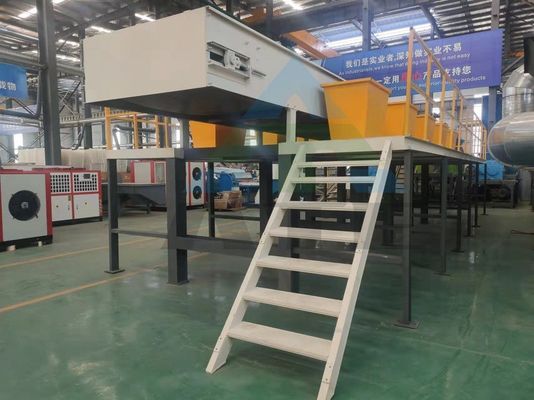

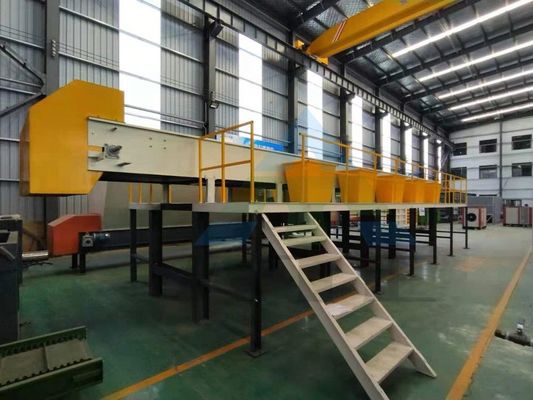

Manual sorting platform
The manual sorting platform is mainly used in the parts of the waste treatment line that cannot be sorted by machinery. It is mainly used for manual sorting of large disturbances before rolling screens and manual sorting of resource utilization after fan winnowing.

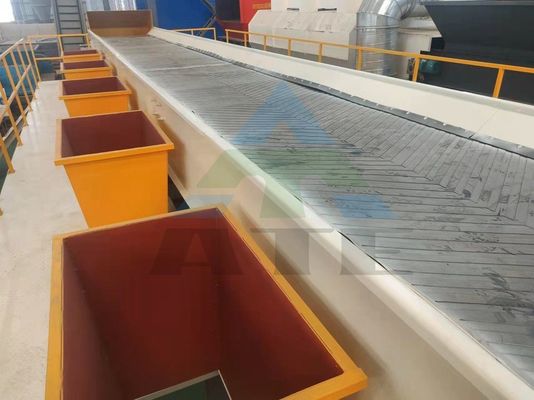

1、The manual sorting platform consists of belt conveyor, platform,silo,safety protection device,light steel workshop (optional) etc, material is along with material to the sorting platform. 2、Such as plastic, paper, fabric, battery, glass etc will be sorted and put to different silos by workers. 3、The left material will go next step , the belt conveyor takes frequency converter and places at middle part. 4、There is a silo for every station at both sides of sorting platform.
Product Features
1、Material of manual sorting platform:
the hopper frame is made of equal Angle steel, and the side plate is made of Q235A steel plate; The main beam is made of hot-rolled H-shaped steel; Reinforcing bars are made of hot rolled channel steel and equal Angle steel. The column is made of hot-rolled H-shaped steel; The column and bottom plate are made of Q235A steel plate; The tread frame is made of hot-rolled channel steel and equal-edge Angle steel, and the cover plate is made of 3# pattern aluminum plate. 2、Manual sorting platform safety protection:
both sides of the sorting belt conveyor are equipped with emergency stop buttons.
At present, there are several main ways of garbage classification in our country: manual sorting, mechanical physical screening, and intelligent garbage sorting equipment sorting. The working modes and technical principles of manual sorting and mechanical physical screening are relatively mature. Manual sorting platforms of different specifications such as 4 stations, 6 stations, and 8 stations can be customized as required.
Product Parameters
Dia.Of screen(mm) | Length (m) | Speed (r/min) | Capacity(t/h) | Bag break rate (%) | Rate of screening (%) | Power(kw) | ||||||
RDG1200 | 4-8 | 0-20 | ≥20 | 60-90 | 70-90 | 4-5.5 | ||||||
RDG1500 | 5-9 | 0-17 | ≥40 | 60-90 | 70-90 | 5.5-7.5 | ||||||
RDG1800 | 6-10 | 0-14 | ≥50 | 60-90 | 70-90 | 7.5-11 | ||||||
RDG2000 | 8-11 | 0-13 | ≥60 | 60-90 | 70-90 | 11-15 | ||||||
RDG2200 | 9-12 | 0-12 | ≥70 | 60-90 | 70-90 | 15-18.5 | ||||||
RDG2500 | 10-15 | 10-15 | ≥80 | 60-90 | 70-90 | 18.5-22 | ||||||
RDG3000 | 10-15 | 0-11 | ≥100 | 60-90 | 70-90 | 22-30 | ||||||
Capacity and detail customized by customer. | ||||||||||||
Product Application
Applicable Materials
Its mainly used to the household waste, construction waste, waste metal, mine industry, power plant, metallurgy etc.
Household Waste
Construction Waste
Bulky Waste
Landfill Stale Waste
Product Details
Working Principle
1、The manual sorting platform consists of belt conveyor, platform,silo,safety protection device,light steel workshop (optional) etc, material is along with material to the sorting platform. 2、Such as plastic, paper, fabric, battery, glass etc will be sorted and put to different silos by workers. 3、The left material will go next step , the belt conveyor takes VFD and places at middle part. There is a silo for every station at both sides of sorting platform.
Successful Project
This is our customer automatic waste segregation machine garbage sorter construction waste sorting line with trommel screen equipment, The city and construction waste mixed together, We also designed a reasonable production line to sorting the mixed garbage.This daily output is around 100 tons.
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
