PV Cell Scrap Shredding Crushing Sorting Recycling Machine for Solar Panel Waste
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Aite |
| Certification: | CE ISO TUV |
| Model Number: | Aite-300/500/800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,600.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction Works , Energy & Mining, Other |
|---|---|---|---|
| Showroom Location: | None | Type: | Refuse Collector |
| Warranty: | 1 Year | Material: | Export Wooden Packing |
| Production Capacity: | 200-800 Kg/h, 200-1000kg/h | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2023 |
| Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel, Motor, Bearing, Gear, PLC, Pump, Engine |
| Weight (KG): | 7500 Kg | Product Name: | Solar Panel Recycling Machine |
| Application: | Green Gnergy Solar Panel Moudular Recycling | Suitable Material: | Solar PV Panels, PV Modules, Solar Panels |
| After Warranty Service: | Field Maintenance | Advantage: | Easy Operation High Efficiency |
| Power(kw): | 65/90/120 | Usage: | Solar Panel Recycling Machine |
| Voltage: | 220 V/380 V | ||
Product Description
Products Description

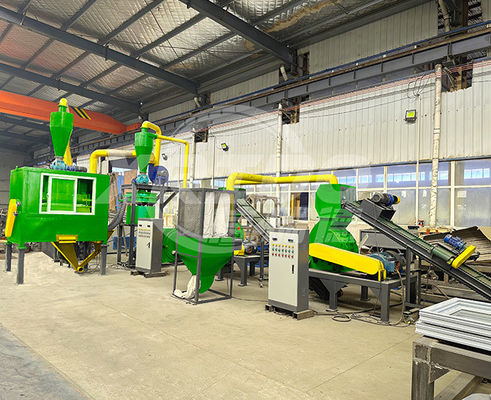

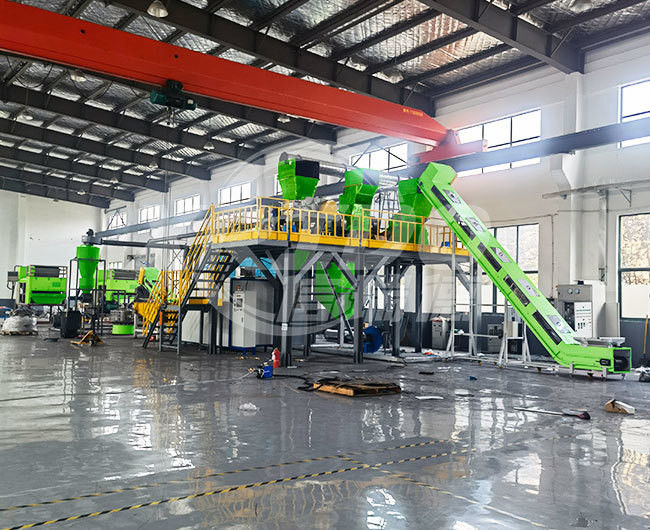

PV Solar Panel Recycling Plant
PV solar panel recycling plants can dismantle, sort, process and recycle 95% of crystalline silicon photovoltaic panel materials: 1. 2/3 of the glass is recycled into broken glass and sent to glass manufacturers. 2. Aluminum is sent to aluminum refineries. 3. Waste plastics can be used as fuel in cement plants. 4. Recycled silicon can be reused in the precious metal industry. 5. The remaining cables and connectors are shredded and sold as copper beads.
Product Parameters
Type | Aite-300 | Aite-500 | Aite-1000 |
Power kw | 105 | 135 | 200 |
Weight KGS | 15000 | 20000 | 30000 |
Dimension m | 20*5*5 | 25*6*5 | 30*6*5 |
Product Application
Applicable Materials
Solar PV Panels, PV Modules, Solar Panels
Final Product
Note: The output particles after shredding scrap metal can be customized.
Other Metal Crushing Recycling Plant
We can customize metal crushing and recycling production line for you.
Scrap Steel Crushing Recycling Line
Waste Aluminum Crushing Production Line
Water Radiator Crushing Sorting Line
Product Details
Photovoltaic solar panel recycling plant recycling process

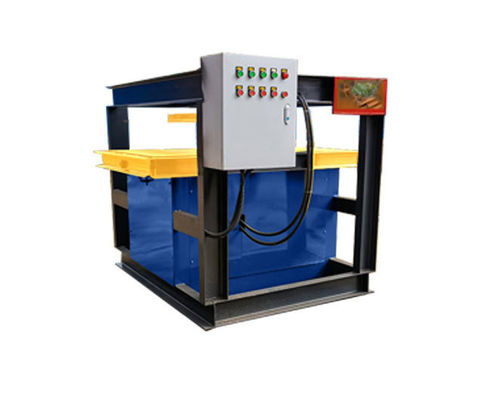

1. Aluminum frame dismantling machine The photovoltaic panel will be fed into the dismantling machine through the hydraulic suction cup, and the hydraulic push system moves the frame. 2. Tempered glass dismantling machine The photovoltaic panel passes through the inside of the equipment, and there are two rollers on both sides of the equipment to press the raw materials. Glass is fragile, so the aluminum will fall off. To avoid air pollution and fine glass powder flying into the air, the whole system is equipped with a pulse dust removal system

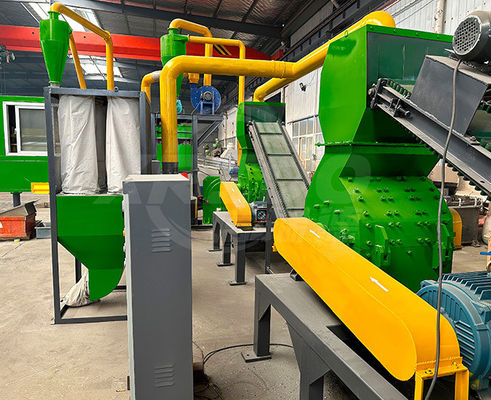

3. EVA and Eva backboard crushing and separation equipment. The Eva raw material will be fed into the double-axis shredder, and the finished product size is 50*50 mm. Then it enters the second hammer mill, and the finished product size is 10*20 mm. Then the raw material will be fed into the grinding system, and the finished product is mixed metals below 3 mm. The gravity concentrator separates the metals and non-metals, and then the electrostatic concentrator separates the silicon from the plastic. The whole system is equipped with a dust removal system to avoid air pollution.
Knife Details Of The Metal Shredder
The blade of the metal shredder is made of high-strength alloy steel, which has the characteristics of strong wear resistance and high strength. The differential speed between the shafts has the functions of tearing, squeezing and biting. It is professionally designed for crushing metal. The design has the advantages of uniform discharge, large output and low noise. The electrical part adopts PLC control, with automatic detection of overload protection and other functions.
Our Advantages
1. Super high crushing efficiency
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improve the grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improve the grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
