The bearings are sealed and highly corrosion resistant.Cooling with coolant prolongs service life.With thermal protection function, it automatically trips when the temperature is too high.
 |

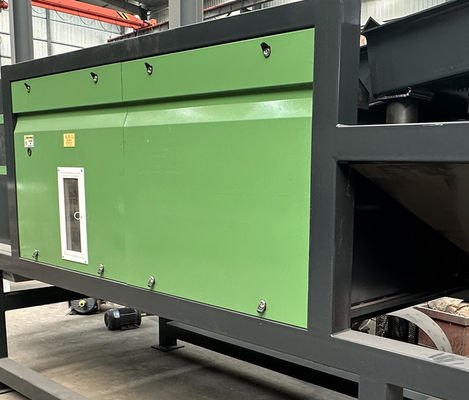

400 Sustainable Copper Aluminum Sorting Machine with Eddy Current Magnetic Separator
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | AITE |
| Model Number: | ESS-600-1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $14,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction Works , Energy & Mining, Other |
|---|---|---|---|
| Showroom Location: | None | Type: | Magnetic Separator |
| Warranty: | 1 Year | Power: | 26.7-79 |
| Material: | Export Wooden Packing | Production Capacity: | ≥20T/H, 2500-4500 KG/H |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, PLC, Pump, Engine | Weight (KG): | 2000 Kg |
| Product Name: | Eddy Current Separator Non Ferrous Metal Separator | Application: | Nonferrous Separation |
| Machine Type: | Waste Sorting Machine | After Warranty Service: | Field Maintenance |
| Advantage: | Easy Operation High Efficiency | Raw Material: | Ubran Waste Garbage |
| Separation Rate: | 98-99% | Function: | Garbage Recycling Sorting |
| Voltage: | 380V(can Customized) | ||
Product Description
Products Description

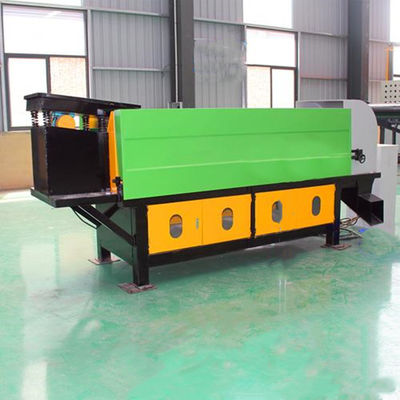

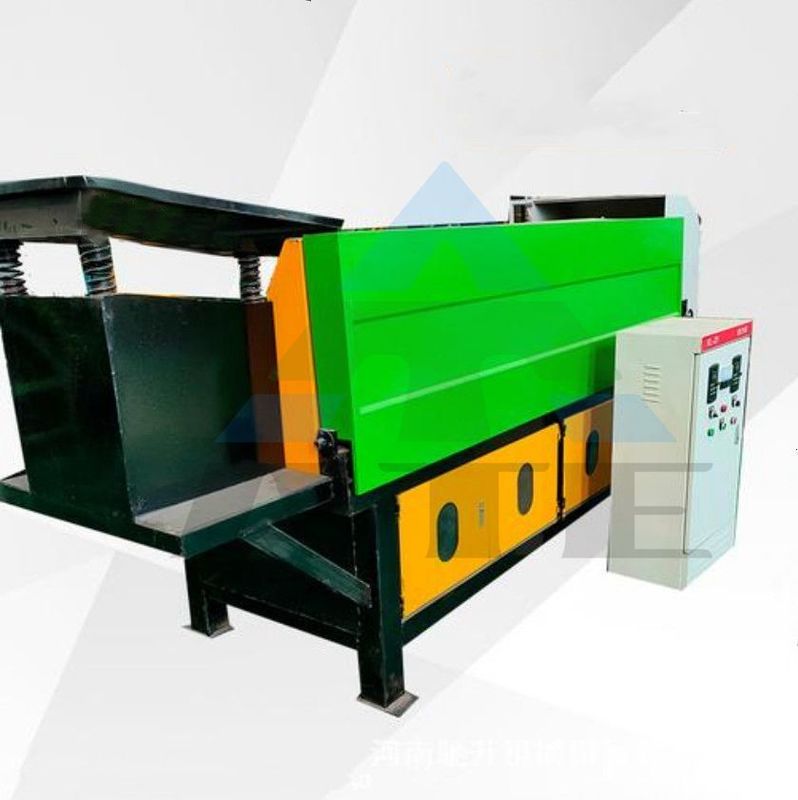

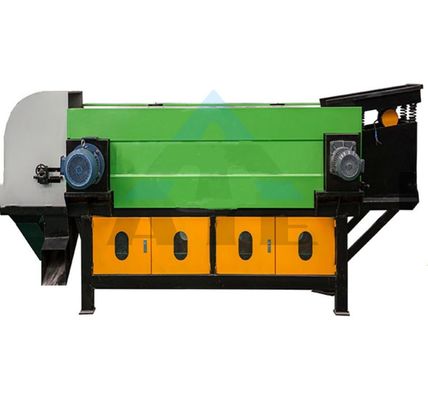

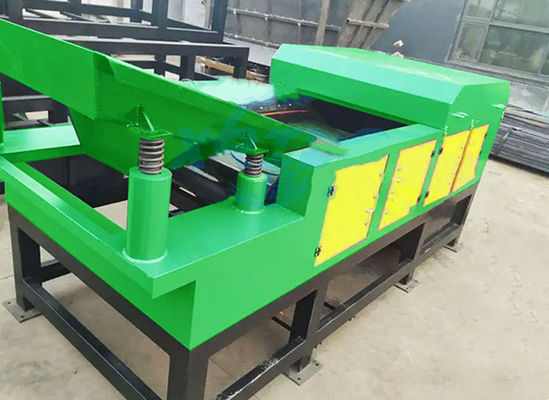

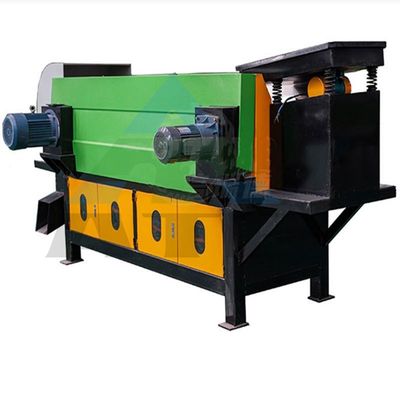

Eddy Current Separator
The Eddy Current Separator/Sorter (also known as copper aluminum separator and non-ferrous metal eddy current separator) is the metal and non-metal separation equipment newly produced by our company. The eddy current separator has a good separation effect on a variety of non-magnetic metals, can effectively implement automatic separation of non-metallic materials and non-ferrous metals, and can recover various non-ferrous metals. Realize the mechanization and automation of sorting process, reduce the labor cost of enterprises, and effectively increase the added value of products.
The eddy current separator is applicable to the recovery of various non-ferrous metals such as urban domestic waste, industrial waste, electronic waste, broken glass, waste plastic doors and windows, urban wood waste, boiler bottom ash, multiple metal mixtures, waste automobiles (sliced by shredder) copper, aluminum, and material processing and sorting in the environmental protection industry.
The eddy current separator is applicable to the recovery of various non-ferrous metals such as urban domestic waste, industrial waste, electronic waste, broken glass, waste plastic doors and windows, urban wood waste, boiler bottom ash, multiple metal mixtures, waste automobiles (sliced by shredder) copper, aluminum, and material processing and sorting in the environmental protection industry.
Product Paramenters
Model | Magnetic roller (φ) | Capacity (T/H) | Power (kw) | Size (mm) |
XRD400 | 300 | 1-2 | 3+0.55+0.25 | 2885*1500*1693 |
XRD600 | 300 | 2-4 | 4+0.75+0.25 | 2885*1700*1695 |
XRD800 | 300 | 5-6 | 5.5+1.1+0.55 | 2950*1900*1695 |
XRD1000 | 300 | 8-10 | 7.5+1.5+0.55 | 2950*2100*1695 |
Product Application
Applicable of Waste Sorting System
1.E waste (for appliance waste dismantling)
2.Aluminum beverage can mixed with plastic bottle
3.Ferrous metal with glass
4.Ferrous metal with plastic
5.Ferrous metal with paper
6.Ferrous metal with rubber
3.Ferrous metal with glass
4.Ferrous metal with plastic
5.Ferrous metal with paper
6.Ferrous metal with rubber
Plastic Flakes
Waste Glass
Waste Paper
Stainless Steel
Separation of copper,aluminum
Separation of fine nonferrous metal
Waste Copper
Electronic waste
Car Scrap
Product Details
Triple protection for bearings
Stable magnetic source
It uses high-strength permanent magnet Nd-Fe-B as the magnetic source, with stable and lasting magnetic properties and unique magnetic system arrangement, which can effectively sort 2mm2 fine materials.
Frequency conversion control
The frequency conversion control belt speed is adjustable, the filter screen gap is adjustable, suitable for materials of different volumes
Made of carbon steel
The fuselage is made of carbon steel with spraying technology,which is durable.
Working Principle
There is a high-frequency alternating strong magnetic field is generated on the surface of the magnetic roller .
When the conductive non-ferrous metal passes through the magnetic field, an eddy current will be induced in the non-ferrous metal, and the eddy current separator itself will produce a direction opposite to the original magnetic field. Non-ferrous metals (such as copper, aluminum, etc.) will jump forward along the conveying direction due to the repulsive force of the magnetic field to achieve separation from other non-metallic substances and achieve the purpose of sorting; its main distinguishing criterion It is the ratio of the conductivity and density of the material. The higher ratio is easier to separate than the lower ratio.
Related Configuration
Domestic garbage crushing and sorting equipment
For the characteristics of low classification of domestic waste,low calorific value, multi-component, high moisture, etc., the "three-dimensionalization (harmless,reduction,resource-based)”treatment of solid wastes is further promoted. After years of field practice summarization of our company and in-depth discussion and analysis of a number of well-known experts in the industry, we have developed a set of practical, feasible, reasonable and economical waste front end crushing and sorting pretreatment systems.It is mainly applied to the pretreatment of domestic wastes before burning, the collaborative disposal of cement kilns, the recycling of domestic waste, and the production of RDF derived fuels.
The main equipment include chain conveyors, biaxial shredders, vibrating screens,manual sorting platforms, magnetic separators,drum screens,and wind separators.
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
