Household Waste Sorting Machinery Horizontal Air Separator for Automatic Plastic Sorting
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | AITE |
| Certification: | CE ISO TUV |
| Model Number: | ASM-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,500.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction Works , Energy & Mining, Other |
|---|---|---|---|
| Showroom Location: | None | Type: | Refuse Collector |
| Warranty: | 1 Year | Power: | 26.7-79 |
| Production Capacity: | ≥20T/H, 20-120(t/h) | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel, Motor, Bearing, Gear, PLC, Pump, Engine |
| Weight (KG): | 2000 Kg | Product Name: | Waste Air Sorting Machine |
| Application: | Household Waste City Garbage Construction Waste Various Solid Garbage | Type: | Solid Waste Sorting Machine |
| After Warranty Service: | Field Maintenance | Advantage: | Easy Operation High Efficiency |
| Separation Rate: | 70-90% | Voltage: | 380V(can Customized) |
| Keywords: | Waste Recycling Plant Sorting | ||
Product Description
Products Description

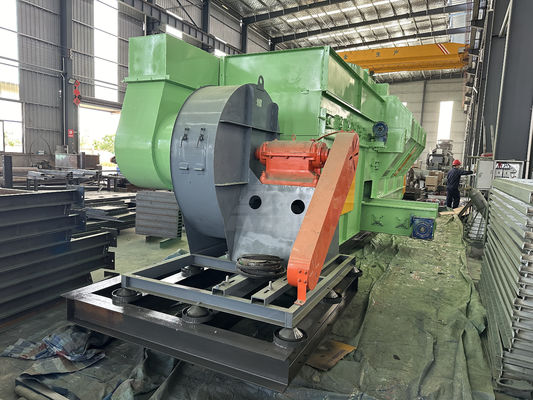

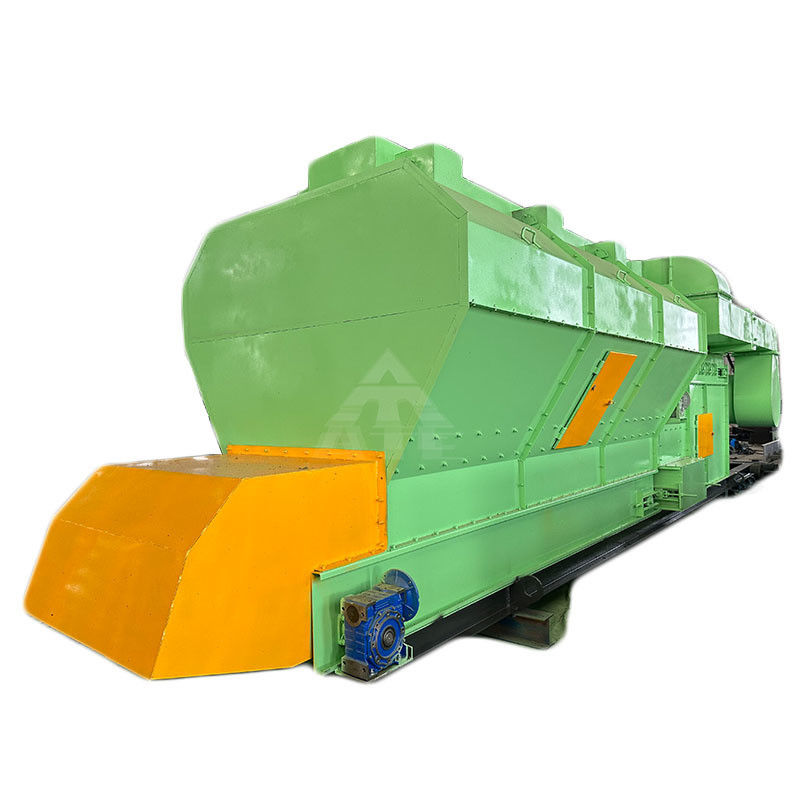

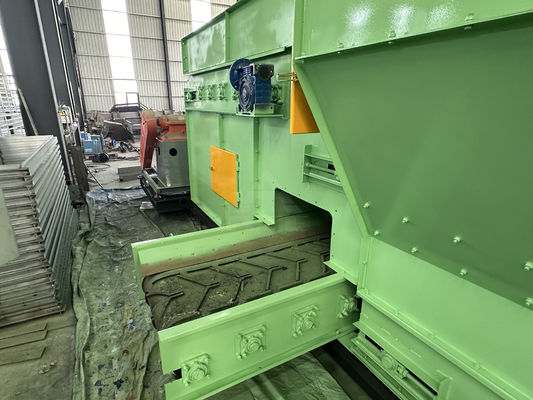

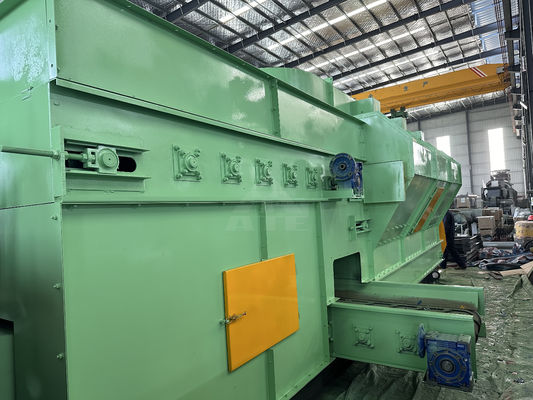

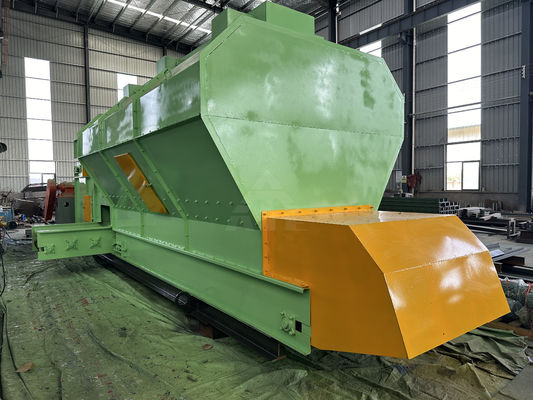

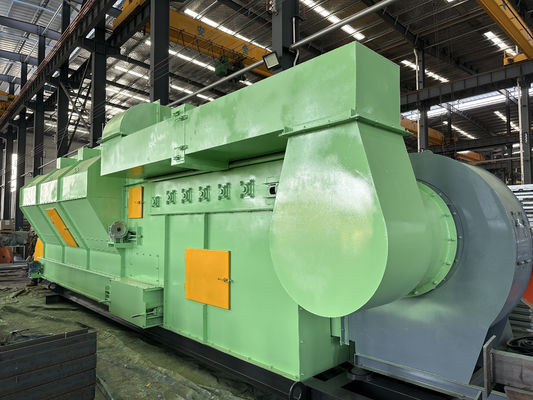

Air sorting machine
About construction waste sorting plant:
Our automatic waste segregation machine garbage sorter construction waste sorting equipment can separate the waste fabrics, plastic bags and other sundries in the recycled aggregate of decoration waste, and can also clear out the large and medium-sized wooden blocks and plastic stool wastes. After two screenings, the impurity separation rate reached 98%.
Product Details
Working principle
Air separator machine is mainly used to the aerodynamics, the light material, middle material and heavy material will be sorted out under the positive and negative air pressure. light materials will be taken up or horizontally into the settling tank, then discharged by the belt conveyor.
The heavy material is down to the conveyor for the upward air pressure can not bear the weight, they will be discharged by conveyor.
Product Paramenters
Model | Capacity (t/h) | Power(kw) | The Details of Power (kw) | ||
RDL-600 | 20 | 26.7 | 7.5+5.5+5.5+3+3+2.2 | ||
RDL-800 | 40 | 37 | 11+7.5+7.5+4+4+3 | ||
RDL1000 | 60 | 44 | 15+7.5+7.5++5.5+5.5+3 | ||
RDL-1200 | 80 | 55.5 | 18.5+11+11+5.5+5.5+4 | ||
RDL-1400 | 100 | 59 | 22+11+11+5.5+5.5+4 | ||
RDL-1600 | 120 | 79 | 30+15+15+7.5+7.5+4 | ||
Product Application
Applicable of Waste Sorting System
CAPACITY: 100-500 tons
It’s mainly used to the household waste, construction waste, waste metal, mine industry, power plant, metallurgy etc.Light material as：shopping bag, weaving bag, paper chip, heavy material(mixed materials with large differences of density and specific gravity).
It’s mainly used to the household waste, construction waste, waste metal, mine industry, power plant, metallurgy etc.Light material as：shopping bag, weaving bag, paper chip, heavy material(mixed materials with large differences of density and specific gravity).
The equipment can effectively separate organic matter,combustible waste plastics, non-crushable metal materials and inorganic wastes from household garbage into four categories. The tumbler screen also has a bag breaking function,and the bag breaking rate reaches 85%. Compared with the traditional process equipment,this complete set of equipment greatly saves investment,has high sorting efficiency, and maximizes resource utilization.
Related Configuration
Working Process of Waste Sorting Plant:
1. The garbage will be transported to the feeding platform by forklift, and the garbage will be carried away by hopper.2. The garbage is evenly distributed by the feeder, and then evenly sent to the next process by the belt conveyor.
3. When the garbage passes through the sorting platform, the larger garbage will be picked out.
4. Waste will be separated by rotary screening machine can be customized according to customer requirements.
5. The plastic will be packed by the baler; Heavy materials will be sent directly to the outside landfill or pulverized to make bricks; We can pick out useful materials from the mix and then recycle them.
6. All garbage sorting equipment in the garbage sorting line can be customized according to the actual needs of customers.
Domestic garbage crushing and sorting equipment
For the characteristics of low classification of domestic waste,low calorific value, multi-component, high moisture, etc., the "three-dimensionalization (harmless,reduction,resource-based)”treatment of solid wastes is further promoted. After years of field practice summarization of our company and in-depth discussion and analysis of a number of well-known experts in the industry, we have developed a set of practical, feasible, reasonable and economical waste front end crushing and sorting pretreatment systems.It is mainly applied to the pretreatment of domestic wastes before burning, the collaborative disposal of cement kilns, the recycling of domestic waste, and the production of RDF derived fuels.
The main equipment include chain conveyors, biaxial shredders, vibrating screens,manual sorting platforms, magnetic separators,drum screens,and wind separators.
Our Advantages
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
