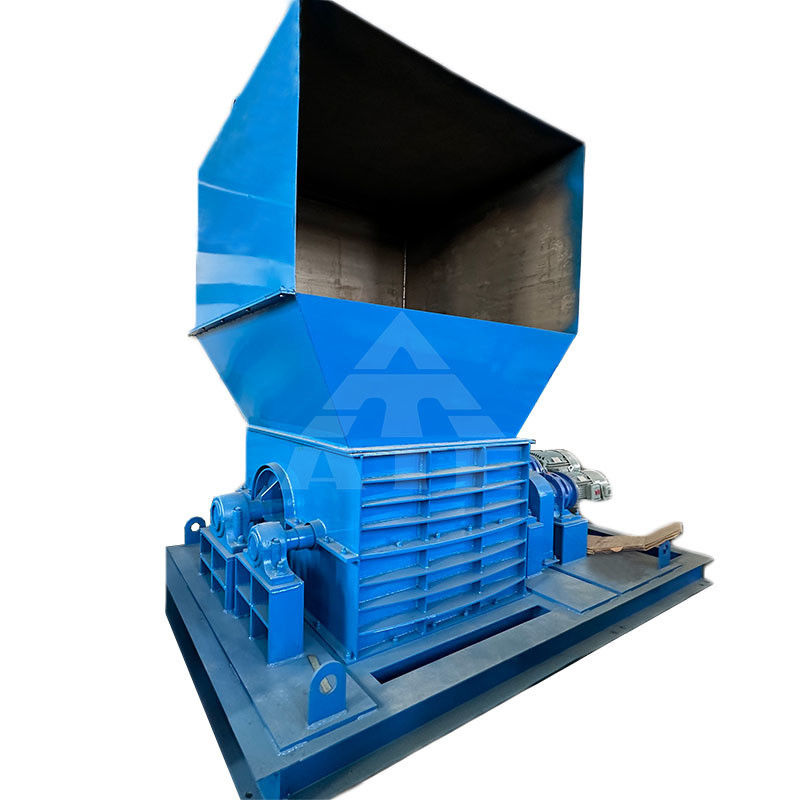

Revolutionary Recycling Equipment Garbage Sorting Equipment with Bag Breaking Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | AITE |
| Certification: | CE ISO TUV |
| Model Number: | AITE-BO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,900.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction Works , Energy & Mining, Other |
|---|---|---|---|
| Showroom Location: | None | Type: | Refuse Collector |
| Warranty: | 1 Year | Power: | 4-5.5 |
| Production Capacity: | ≥20T/H, 20-100(t/h) | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel, Motor, Bearing, Gear, PLC, Pump, Engine |
| Weight (KG): | 2000 Kg | Product Name: | Bag Breaking Machine |
| Application: | Open Plastic Bags Woven Bags Etc | Type: | Garbage Sorting Equipment |
| After Warranty Service: | Field Maintenance | Advantage: | Easy Operation High Efficiency |
| Separation Rate: | 70-90% | Bag Break Rate (%): | 60-90% |
| Voltage: | 380V(can Customized) | ||
Product Description
Products Description
Working principle
The bag opener is used to open plastic bags woven bags etc, used to transport garbage bag breaking. And after breaking transport the material to the sorting and crushing system.
This equipment replaces the traditional manual making bag and improves the sorting efficiency.
The bag opener uses different shapes of main bag breaking shaft knife and the auxiliary bag breaking shaft knife to rotate in opposite directions to cut plastic bags, woven bags etc, humanized stepless peed change the design, PLC Controller system can easy realize forward rotation to break bags, reverse release winding.
About construction waste sorting plant:
Our automatic waste segregation machine garbage sorter construction waste sorting equipment can separate the waste fabrics, plastic bags and other sundries in the recycled aggregate of decoration waste, and can also clear out the large and medium-sized wooden blocks and plastic stool wastes. After two screenings, the impurity separation rate reached 98%.
Product Parameters
Dia.Of screen(mm) | Length (m) | Speed (r/min) | Capacity(t/h) | Bag break rate (%) | Rate of screening (%) | Power(kw) |
RDG1200 | 4-8 | 0-20 | ≥20 | 60-90 | 70-90 | 4-5.5 |
RDG1500 | 5-9 | 0-17 | ≥40 | 60-90 | 70-90 | 5.5-7.5 |
RDG1800 | 6-10 | 0-14 | ≥50 | 60-90 | 70-90 | 7.5-11 |
RDG2000 | 8-11 | 0-13 | ≥60 | 60-90 | 70-90 | 11-15 |
RDG2200 | 9-12 | 0-12 | ≥70 | 60-90 | 70-90 | 15-18.5 |
RDG2500 | 10-15 | 10-15 | ≥80 | 60-90 | 70-90 | 18.5-22 |
RDG3000 | 10-15 | 0-11 | ≥100 | 60-90 | 70-90 | 22-30 |
Product Application
The bag opener is used to open plastic bags woven bags etc, used to transport garbage bag breaking. And after breaking transport the material to the sorting and crushing system.

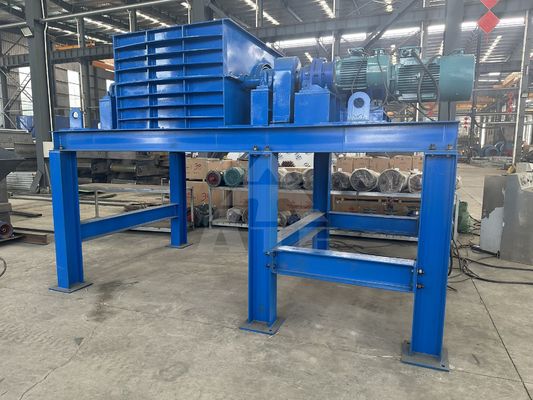

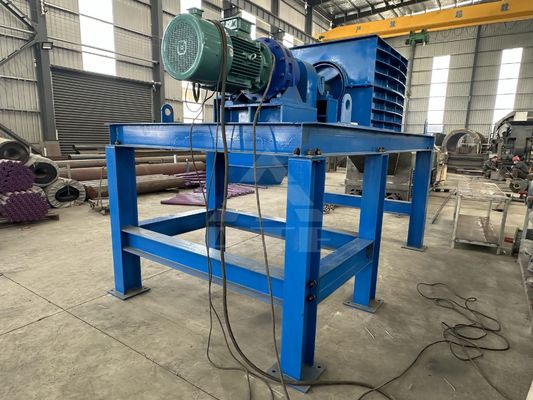

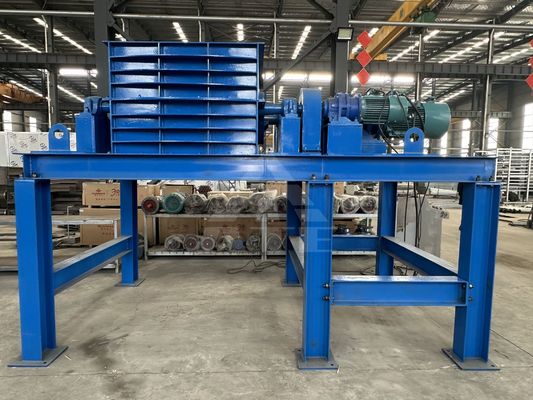

Product Details

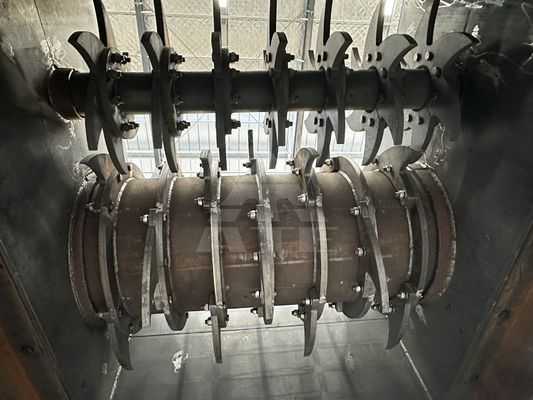

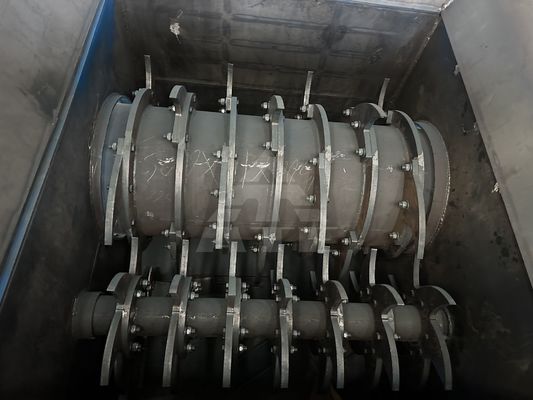

Knife Details Of The Metal Shredder
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
